Additional information
Weight | N/A |
---|---|
Fitting Size | 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 80mm, 100mm |
PVRT15 | PVRT20 | PVRT25 | PVRT32 | PVRT40 | PVRT50 | PVRT80 | PVRT100

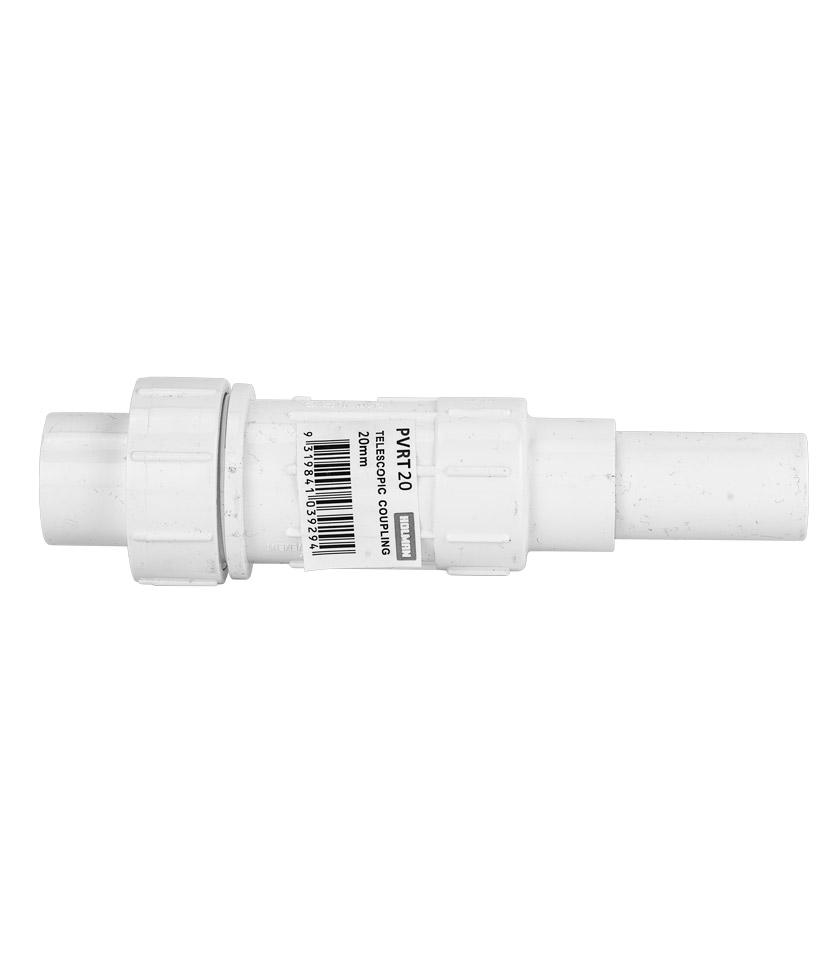

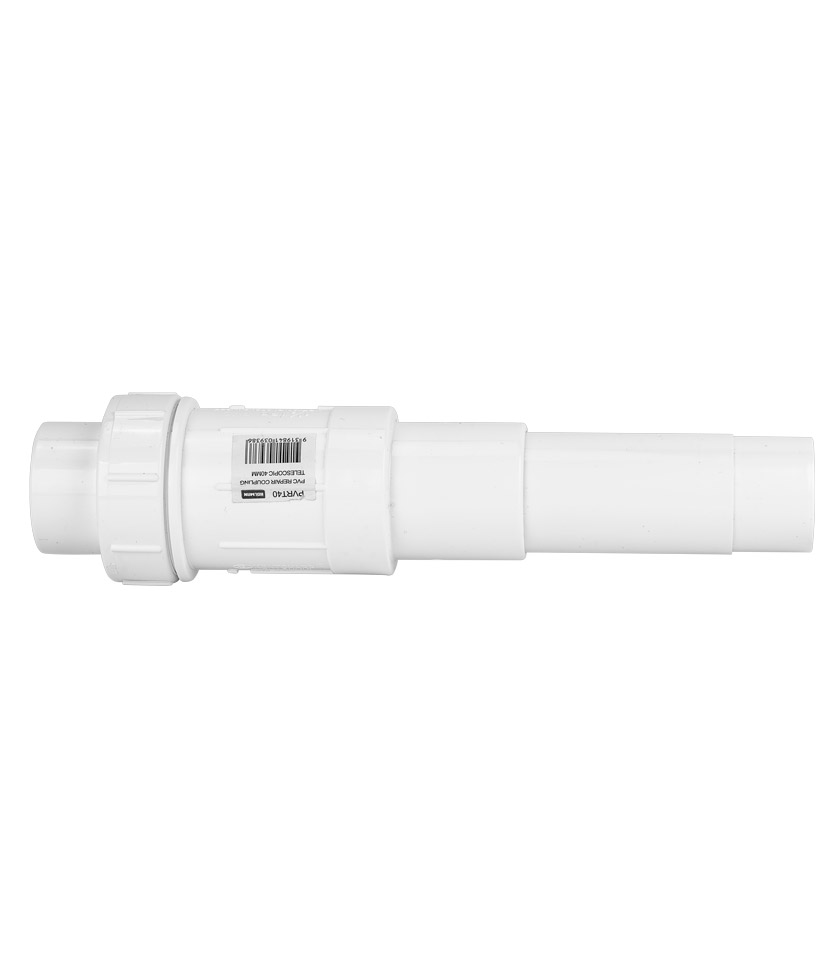

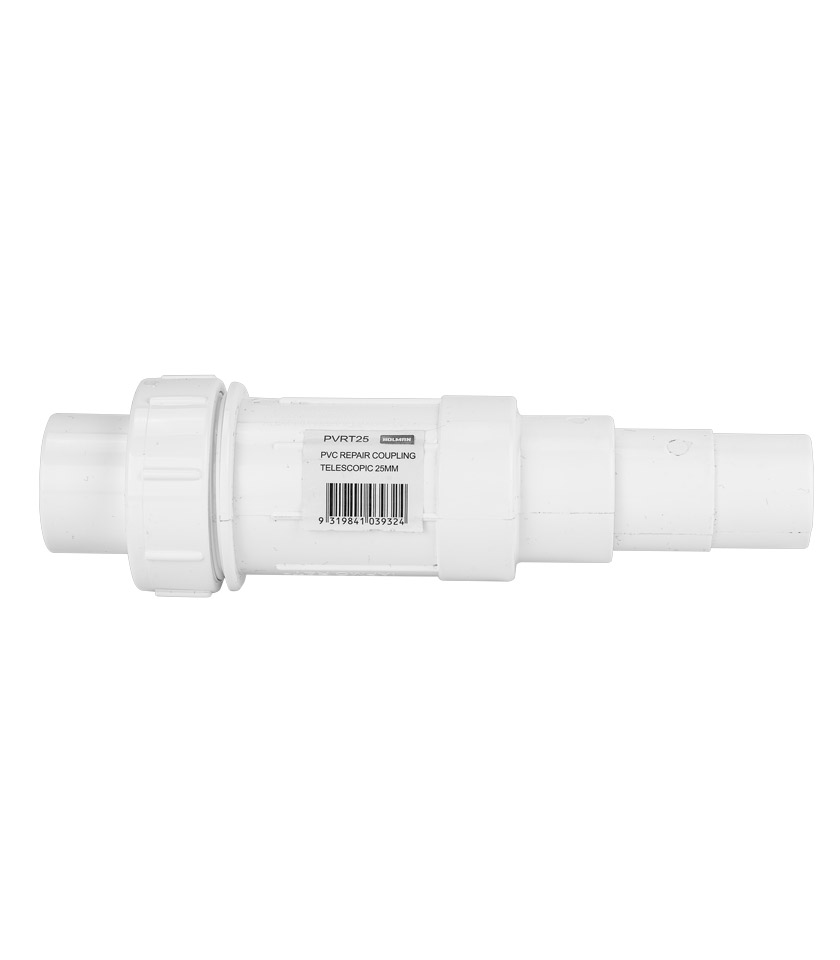

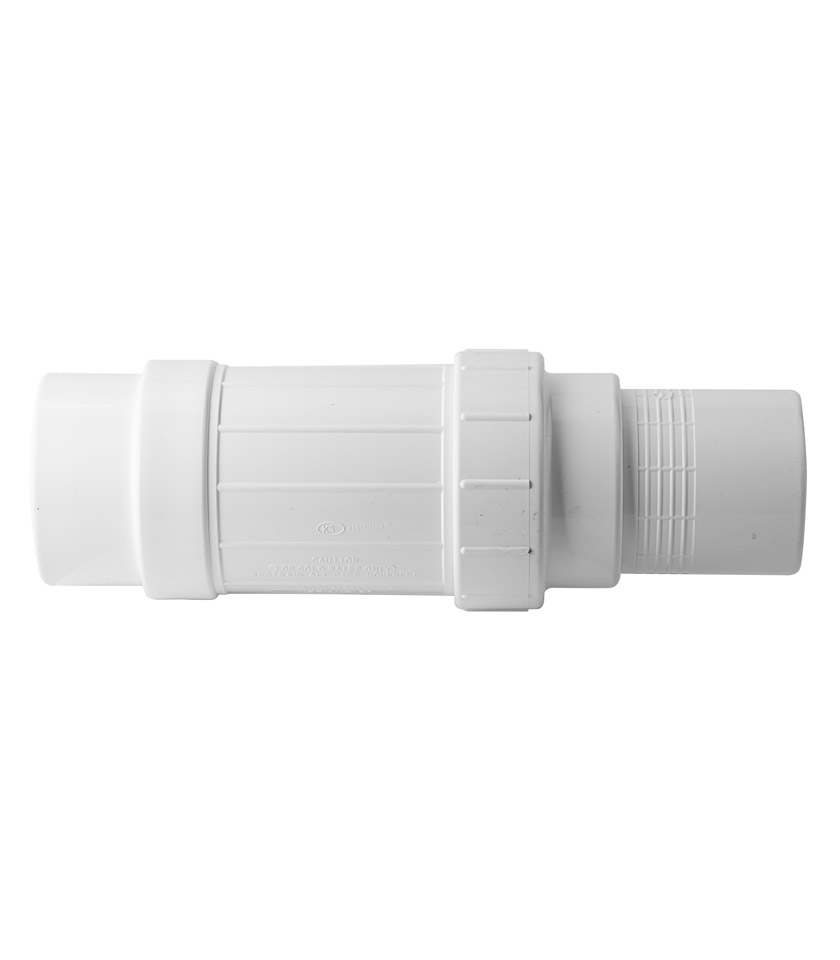

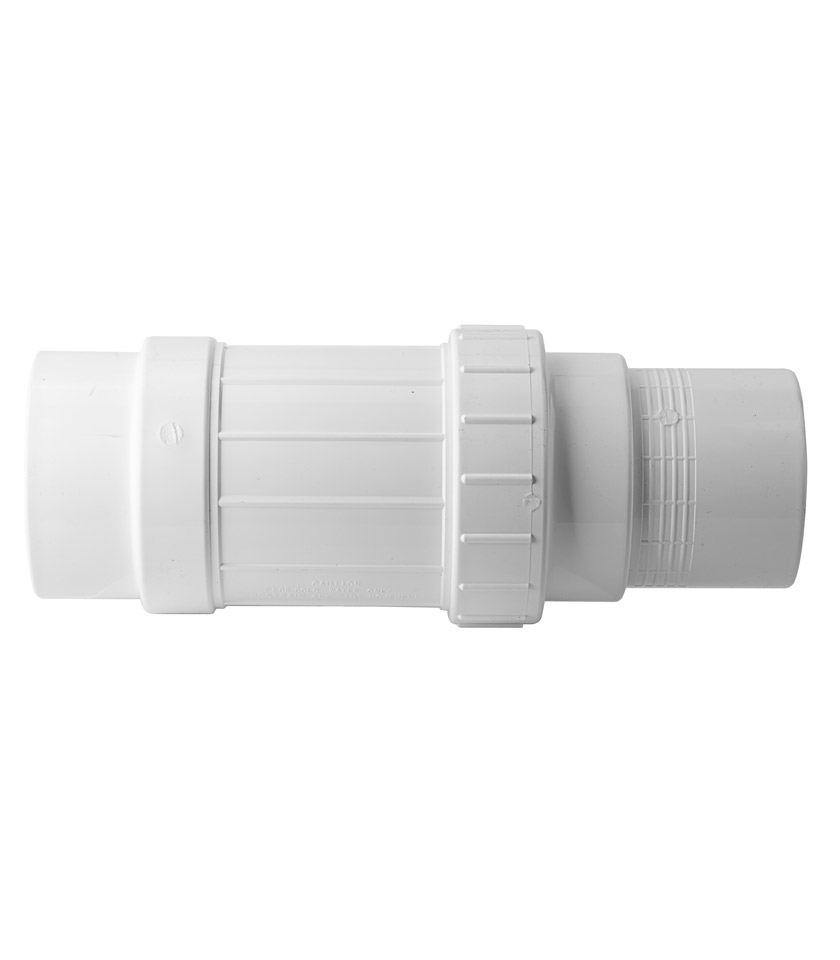

A PVC Telescopic Repair Coupling is used for repairing broken sections of pressure pipe. After trimming away broken pipe, the telescopic coupling can bridge the repair gap to provide a reliable join. It also eliminates further dismantling of the irrigation system which is an advantage over a repair using rigid fittings. Watermark Approved Fittings, manufactured to AS/NZS 1477 Standard.
Weight | N/A |
---|---|
Fitting Size | 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 80mm, 100mm |
Code | Description | Bag | Box | |
---|---|---|---|---|
![]() | PVRT15 | 15mm | - | 90 |
![]() | PVRT20 | 20mm | - | 60 |
![]() | PVRT25 | 25mm | - | 40 |
![]() | PVRT32 | 32mm | - | 30 |
![]() | PVRT40 | 40mm | - | 20 |
![]() | PVRT50 | 50mm | - | 16 |
![]() | PVRT80 | 80mm | - | 3 |
![]() | PVRT100 | 100mm | - | 2 |
Code | Description | Angle | Size | Weight |
---|---|---|---|---|
PVRT15 | 15mm | – | 15mm | 0.14kg |
Code | Description | Angle | Size | Weight |
---|---|---|---|---|
PVRT20 | 20mm | – | 20mm | 0.2kg |
Code | Description | Angle | Size | Weight |
---|---|---|---|---|
PVRT25 | 25mm | – | 25mm | 0.33kg |
Code | Description | Angle | Size | Weight |
---|---|---|---|---|
PVRT32 | 32mm | – | 32mm | 0.45kg |
Code | Description | Angle | Size | Weight |
---|---|---|---|---|
PVRT40 | 40mm | – | 40mm | 0.55kg |
Code | Description | Angle | Size | Weight |
---|---|---|---|---|
PVRT50 | 50mm | – | 50mm | 0.84kg |
Code | Description | Angle | Size | Weight |
---|---|---|---|---|
PVRT80 | 80mm | – | 80mm | 2.16kg |
Code | Description | Angle | Size | Weight |
---|---|---|---|---|
PVRT100 | 100mm | – | 100mm | 2.74kg |
