Additional information
| Weight | N/A |
|---|---|
| Fitting Size | 100mm F&F, 100mm M&F, 150mm F&F, 150x100mm F&F, 225mm F&F, 225x100mm F&F, 225x150mm F&F, 300x100mm F&F, 300x150mm F&F, 375x100mm F&F, 375x150mm F&F, 375x225mm F&F |
DWV PVC TEST OPENING WITH CAP
DWVF0510 | DWVF0520
IOMD150X150 | IOSEWW150X100 | IOSEW225X225 | IOSEW225X100 | IOSEW225X150 | IOSEW300X100 | IOSEW300X150 | IOSEW375X100 | IOSEW375X150 | IOSEW375X225
The Holman DWV PVC Test Opening with Cap is for sewer & vent use. Complies with AS/NZS1260.
Reviews
| Code | Description | Bag | Box | Pallet | |
|---|---|---|---|---|---|

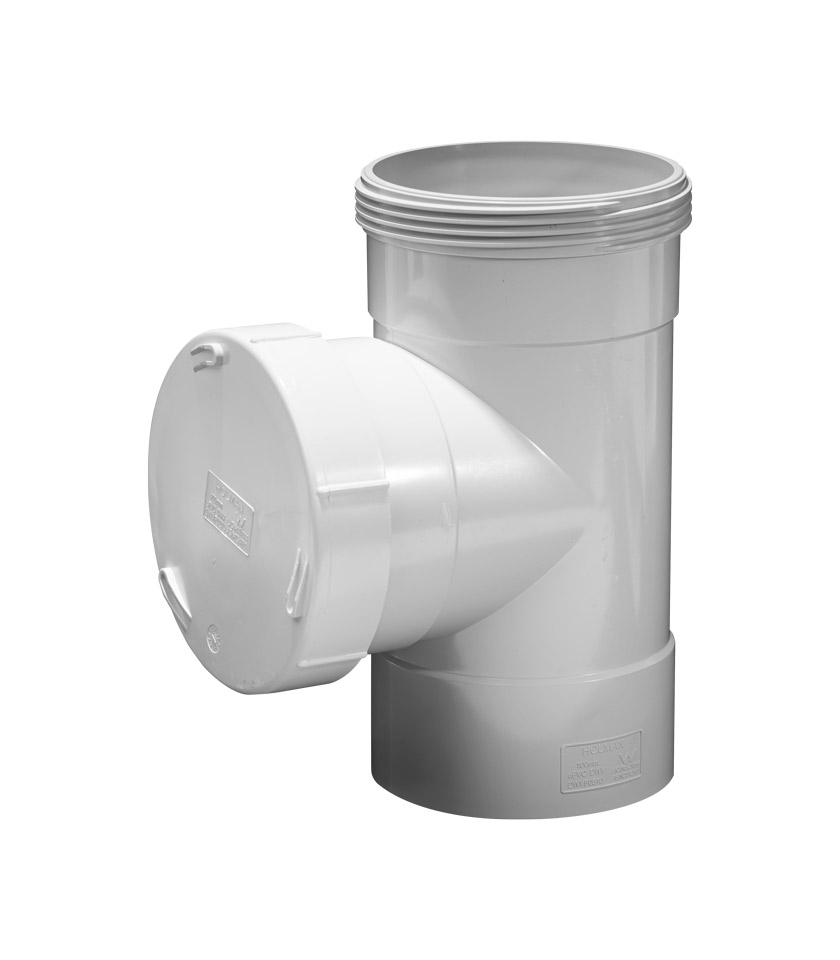

 | DWVF0510 | 100mm F&F | - | 13 | 234 |

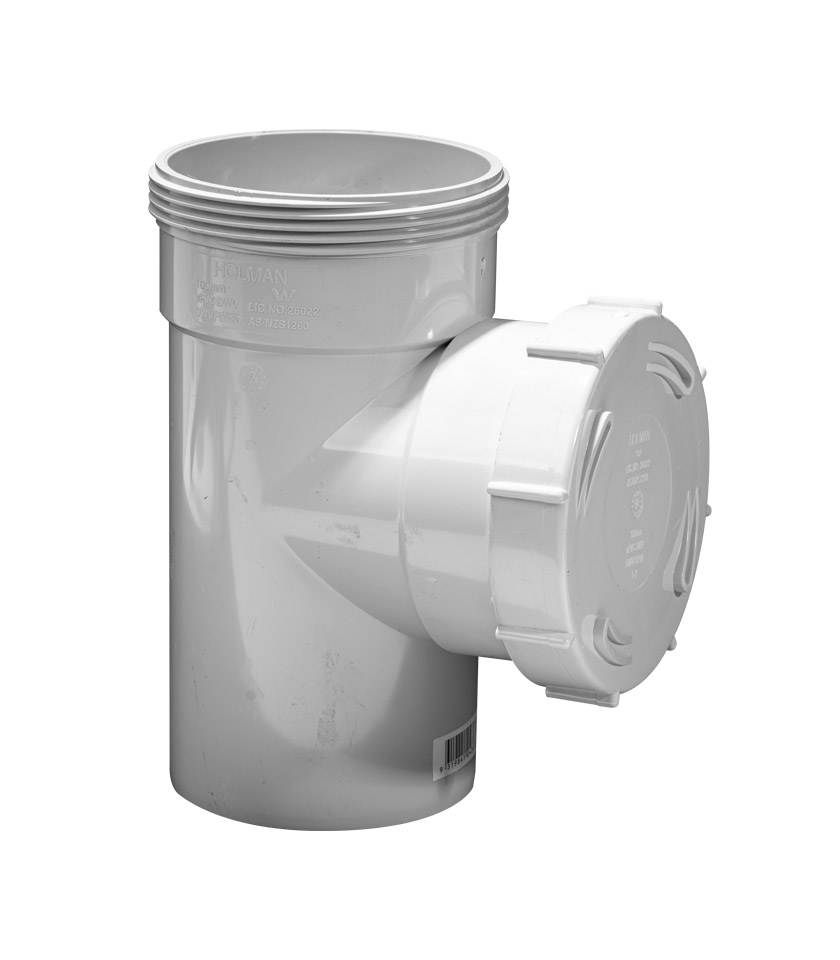

 | DWVF0520 | 100mm M&F | - | 13 | 234 |
 | IOMD150X150 | 150mm F&F | - | 8 | - |
| IOSEWW150X100 | 150mm x 100mm F&F (F) | - | - | - |

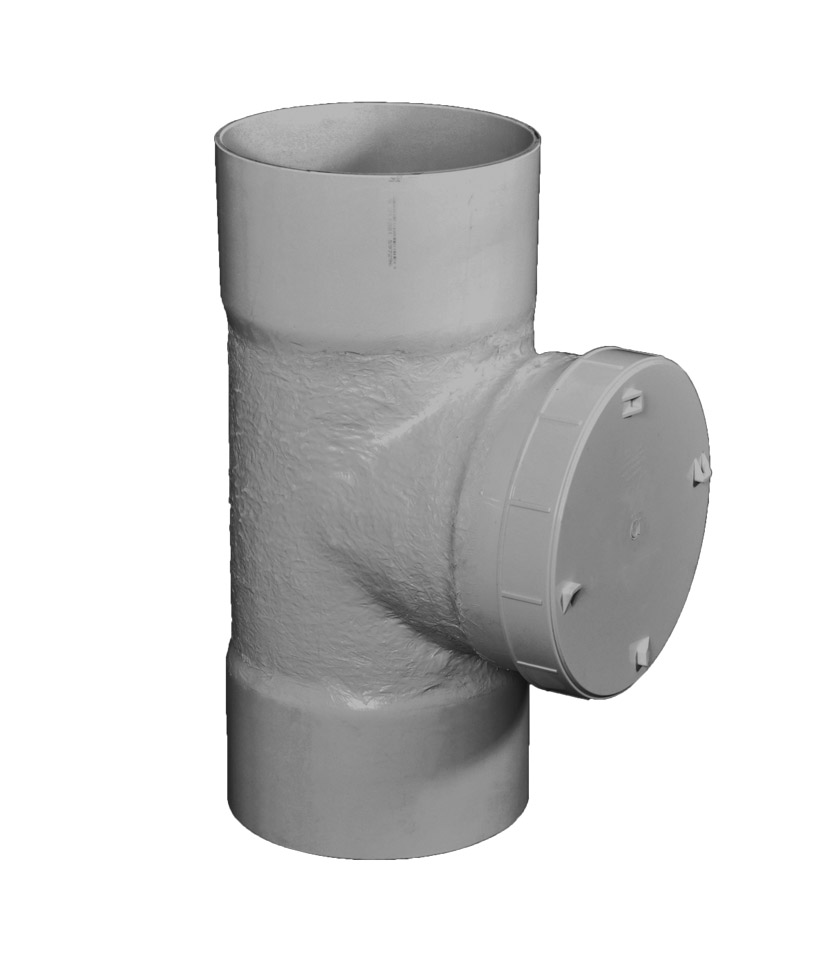

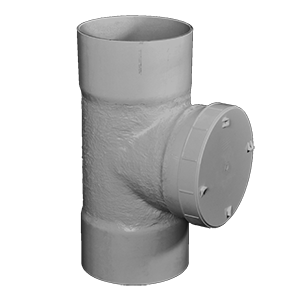

 | IOSEW225X225 | 225mm F&F (F) | - | - | - |

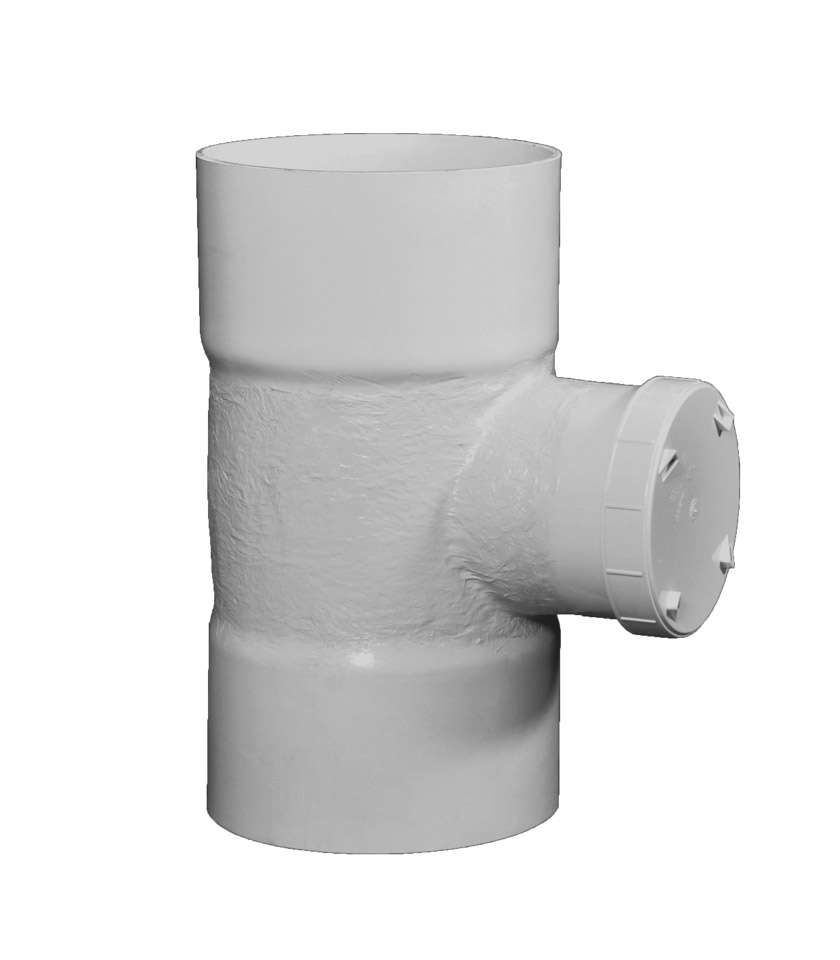

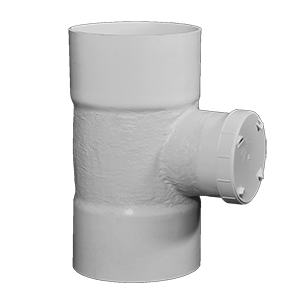

| IOSEW225X100 | 225mm x 100mm F&F (F) | - | - | - |
 | IOSEW225X150 | 225mm x 150mm F&F (F) | - | - | - |
| IOSEW300X100 | 300mm x 100mm F&F (F) | - | - | - |
| IOSEW300X150 | 300mm x 150mm F&F (F) | - | - | - |
| IOSEW375X100 | 375mm x 100mm F&F (F) | - | - | - |
| IOSEW375X150 | 375mm x 150mm F&F (F) | - | - | - |
| IOSEW375X225 | 375mm x 225mm F&F (F) | - | - | - |
Tech Sheet 100mm
Tech Specs
- Model Name: DWV PVC Test Opening 100mm F&F
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| DWVF0510 | 100mm F&F | – | 100mm | W:130 H:220 L:180 | 1kg |
| DWVF0520 | 100mm M&F | – | 100mm | W:130 H:220 L:180 | 0.88kg |
Tech Sheet 150mm
Tech Specs
- Model Name: DWV Fabfit Test Opening 150mm F&F (F)
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| IOMD150X150 | 150mm F&F (F) | – | 150mm | – | 2.03kg |
| IOSEWW150X100 | 150x100mm F&F (F) | – | 150x100mm | – | – |
Tech Sheet 225mm
Tech Specs
- Model Name: DWV Fabfit Test Opening 225mm F&F (F)
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| IOSEW225X225 | 225mm F&F (F) | – | 225mm | – | – |
| IOSEW225X100 | 225x100mm F&F (F) | – | 225mm | – | – |
| IOSEW225X150 | 225x150mm F&F (F) | – | 225x150mm | – | – |
Tech Sheet 300mm
Tech Specs
- Model Name: DWV Fabfit Test Opening 300x100mm F&F (F)
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| IOSEW300X100 | 300x100mm F&F (F) | – | 300x100mm | – | – |
| IOSEW300X150 | 300x150mm F&F (F) | – | 300x150mm | – | – |
Tech Sheet 375mm
Tech Specs
- Model Name: DWV Fabfit Test Opening 375x100mm F&F (F)
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| IOSEW375X100 | 375x100mm F&F (F) | – | 375x100mm | – | – |
| IOSEW375X150 | 375x150mm F&F (F) | – | 375x150mm | – | – |
| IOSEW375X225 | 375x225mm F&F (F) | – | 375x225mm | – | – |
