Additional information
| Weight | N/A |
|---|---|
| Fitting Size | 40mm, 50mm, 65mm |
| Fitting Degree | 45º, 88º |
DWV PVC BEND INSPECTION OUTLET
Female & Female
DWVF0032 | DWVF0034 | DWVF0036 | DWVF0040
The Holman Female & Female Bend Inspection Outlet is for sewer and vent use. Connect pipe with solvent cement. Complies with AS/NZS1260.
Reviews
| Code | Description | Bag | Box | Pallet | |
|---|---|---|---|---|---|

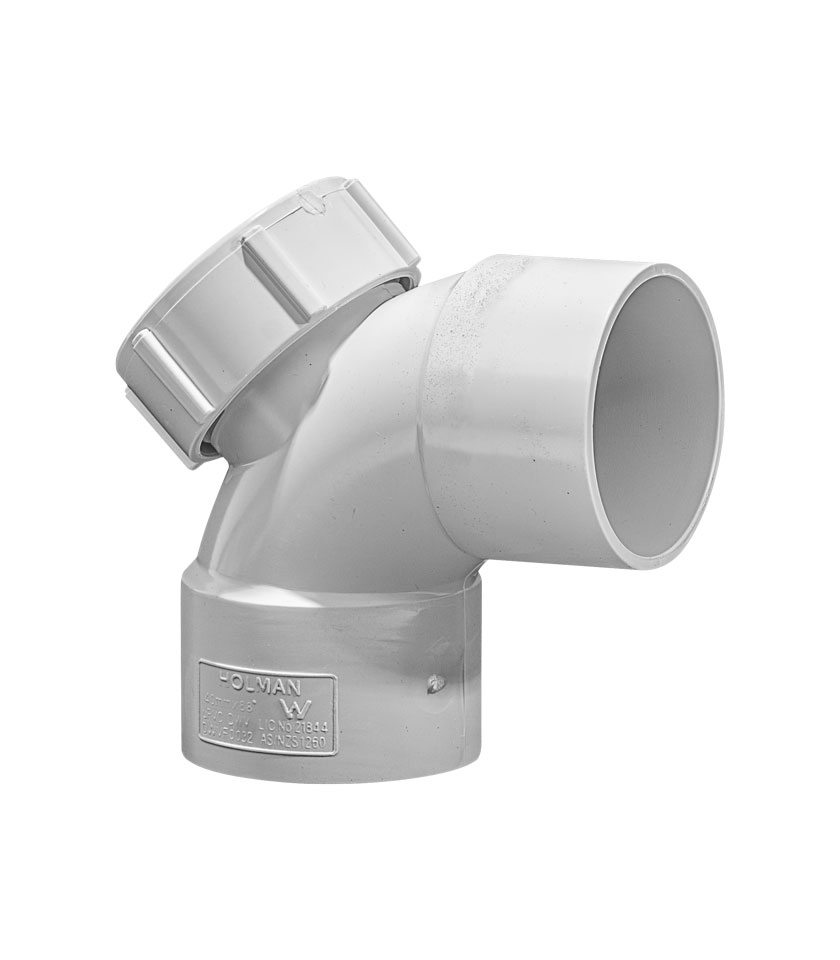

 | DWVF0032 | 40mm 88º | 10 | 50 | 2400 |

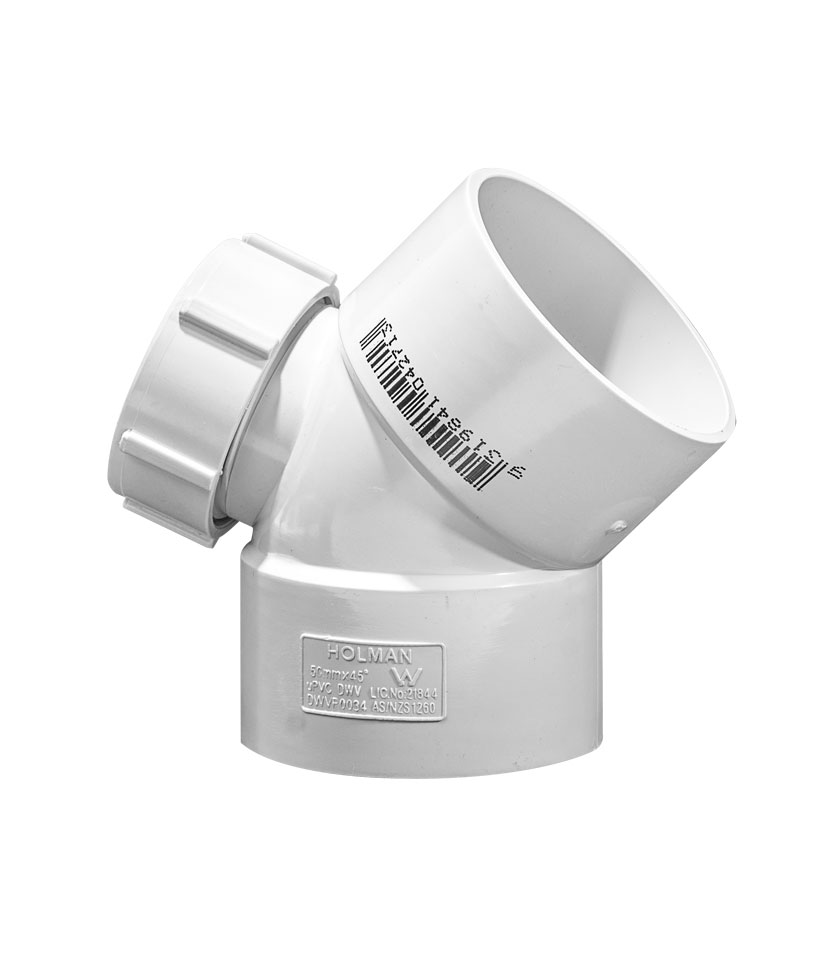

 | DWVF0034 | 50mm 45º | 5 | 90 | 2430 |

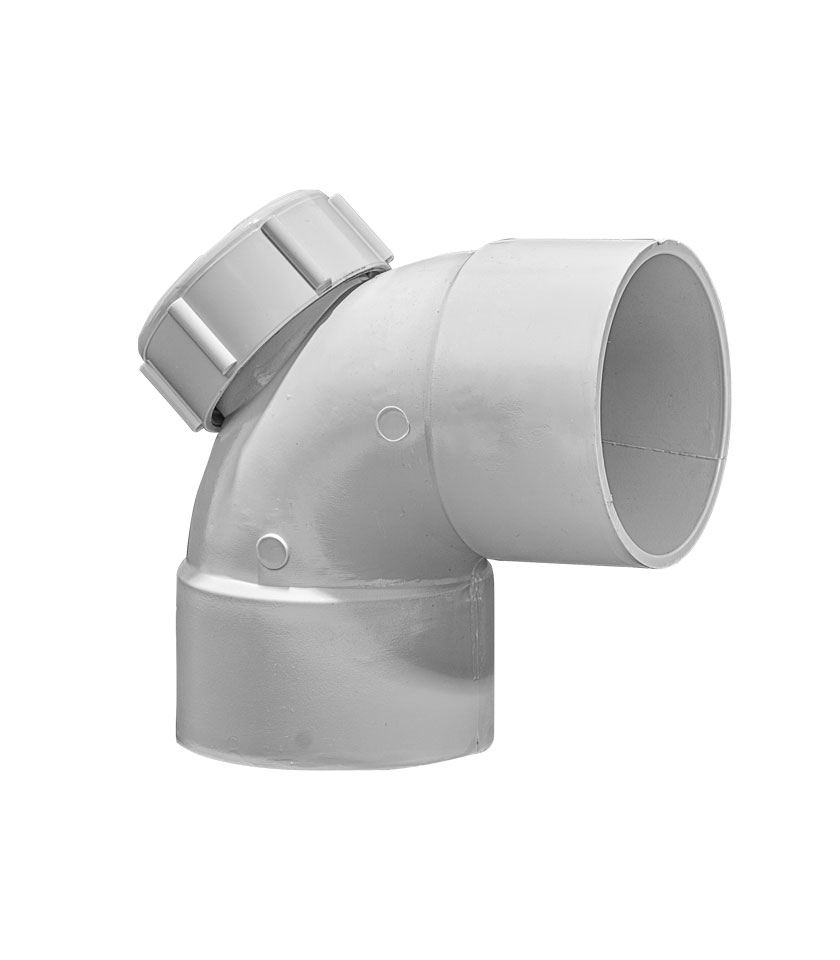

 | DWVF0036 | 50mm 88º | 10 | 70 | 1890 |
 | DWVF0040 | 65mm 88º | 10 | 60 | 1080 |
Tech Sheet 45º
Tech Specs
- Model Name: 50mm x 45º IO Female & Female Bend
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| DWVF0034 | 50mm 45º | 45º | 50mm | W:60 H:100 L:100 | 0.11kg |
Tech Sheet 88º
Tech Specs
- Model Name: DWV PVC Bend F&F IO 40mm 88º
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| DWVF0032 | 40mm 88º | 88º | 40mm | W:51 H:10 L:10 | 0.09kg |
| DWVF0036 | 50mm 88º | 88º | 88mm | W:60 H:10 L:10 | 0.12kg |
| DWVF0040 | 65mm 88º | 88º | 40mm | W:51 H:10 L:10 | 0.18kg |
